Artikelnummer:
ASS11550
EAN:
4711081917762
Herstellernummer:
90MB1BP0-M0EAY0

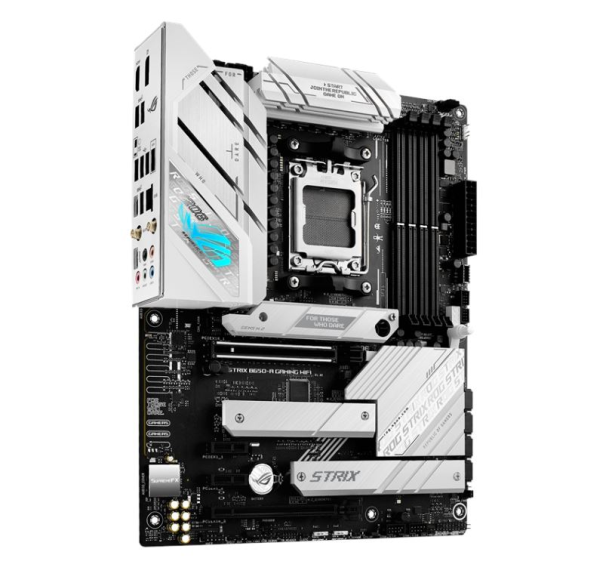

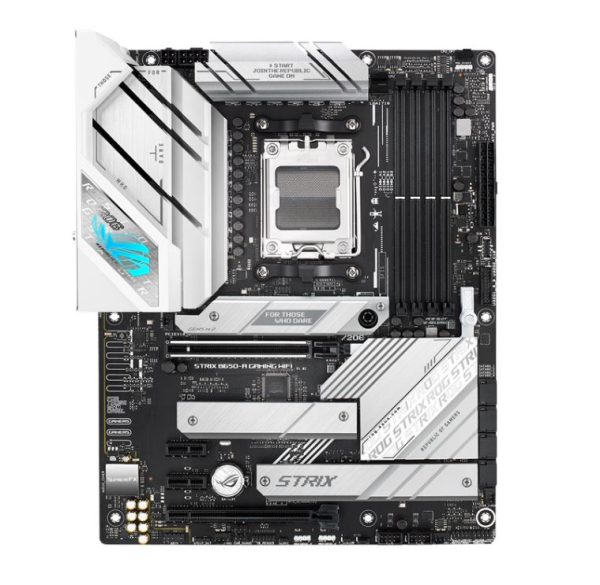

Produktinformationen "ASUS ROG STRIX B650-A GAMING WIFI"
Typ | Mainboard | |
Farbe | schwarz | |
Sockel | AM5 | |
Max. unterstützte CPUs | 1 | |
Betriebssystem | Unterstützung | Windows 10 ready, Windows 11 ready |
Chipsatz | AMD B650 | |
Steckplätze | PCIe x16 | 2x (davon: 1x PCIe x16, 1x PCIe x4, 2x PCIe x1) |
PCIe x1 | 2 | |
BIOS | 256 MB Flash ROM, UEFI AMI BIOS | |
EFI-BIOS | Ja | |
Formfaktor | ATX | |
Verwendung | PC | |
Netzteil | ATX12V (24-Pin + 8-Pin + 4-Pin) | |
Speicher | maximal | 128 GB |
Anzahl der Sockel | 4x DDR5 | |
unterstützte Standards | DDR5-4800, DDR5-5000, DDR5-5400(OC), DDR5-5600(OC), DDR5-5800(OC), DDR5-6000(OC), DDR5-6200(OC), DDR5-6400+(OC) | |
Kanäle | 2 | |
Maximale Speicherranks | 8192 | |
ECC wird unterstützt | Ja | |
Anschlüsse (extern) | Tastatur (PS/2) | 1 |
USB-A 3.2 Gen 2 (10 Gbit/s) | 2 | |
USB-A 3.2 Gen 1 (5 Gbit/s) | 2 | |
Hinweis: | Die Bezeichnung USB 3.2 Gen 2 entspricht den früheren Bezeichnungen USB 3.1 Gen 2 bzw. USB 3.1. | |
USB-A 2.0 | 4 |
|
VGA | 1 | |
HDMI | 1 | |
DisplayPort-Out | 1 | |
Mikrofon | 1 | |
Line-In | 1 | |
Line-Out | 1 | |
RJ-45 | 1 | |
Bluetooth | Ja | |
WLAN | Ja | |
Anschlüsse (intern) | SATA | 4 |
M.2 | 3 | |
M.2-Modul Key | M | |
M.2 Schnittstelle | PCIe | |
M.2 Länge | 42 - 110 mm | |
RGB LED Header | 1 | |
addressable RGB LED Header | 3 | |
USB-C 3.2 Gen 1 (5 Gbit/s) | 1 | |
4-polig PWM-Lüfter | 5 | |
Anschlüsse (optional) | USB 3.2 Gen 1 (5 Gbit/s) | 2 |
USB 2.0 | 4 | |
Seriell | 1 | |
RGB Standard | AURA Sync | |
SATA-Controller | AMD B650 | |
direkt nutzbare RAID-Level | 0, 1, 10 | |
USB-Controller | AMD B650 | |
Onboard Grafik | Die Grafikanschlüsse des Mainboards sind nur bei Verwendung einer CPU mit integriertem Grafikchip nutzbar. | |
Sound | Realtek HD Audio | |
LAN | Intel 2.5Gb Ethernet | |
Wi-Fi 6E + Bluetooth 5.2 | ||
Weitere Informationen | Um auch neueste Prozessorkerne zu unterstützen, ist evtl. ein BIOS-Update erforderlich. | |
Abmessungen | Breite: 244 mm x Höhe: 50 mm x Tiefe/Länge: 305 mm | |
Gewicht | 1,2 kg |
Arbeitsspeicher-Kompatibilität : | DDR5 Arbeitsspeicher |
---|---|
Formfaktor: | ATX |
Sockel: | AMD AM5 |
Chipsatz: | AMD B650 |
WLAN Adapter: | 802.11ax Wi-Fi 6E |
Bluetooth: | Bluetooth V5.2 |
